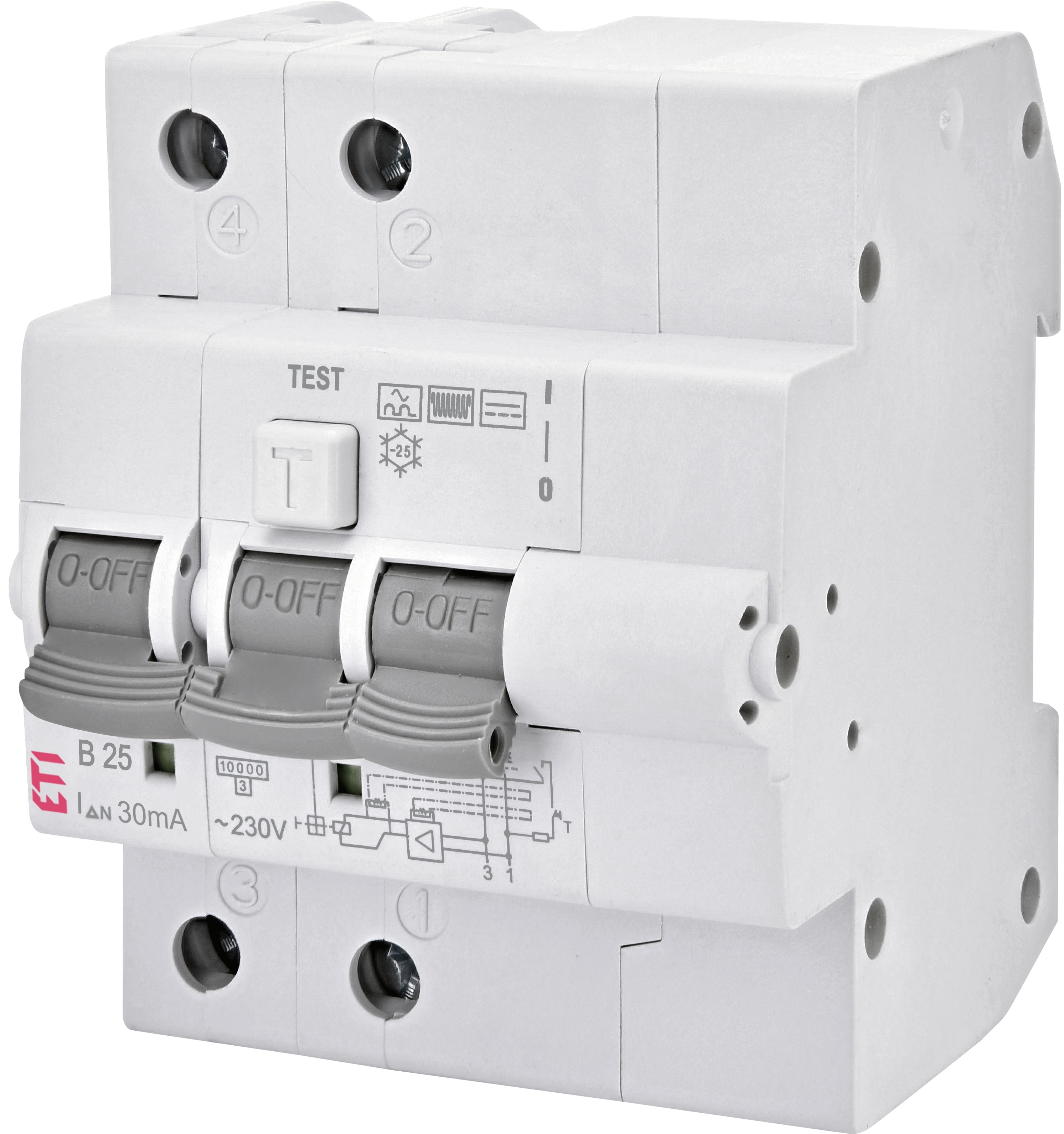

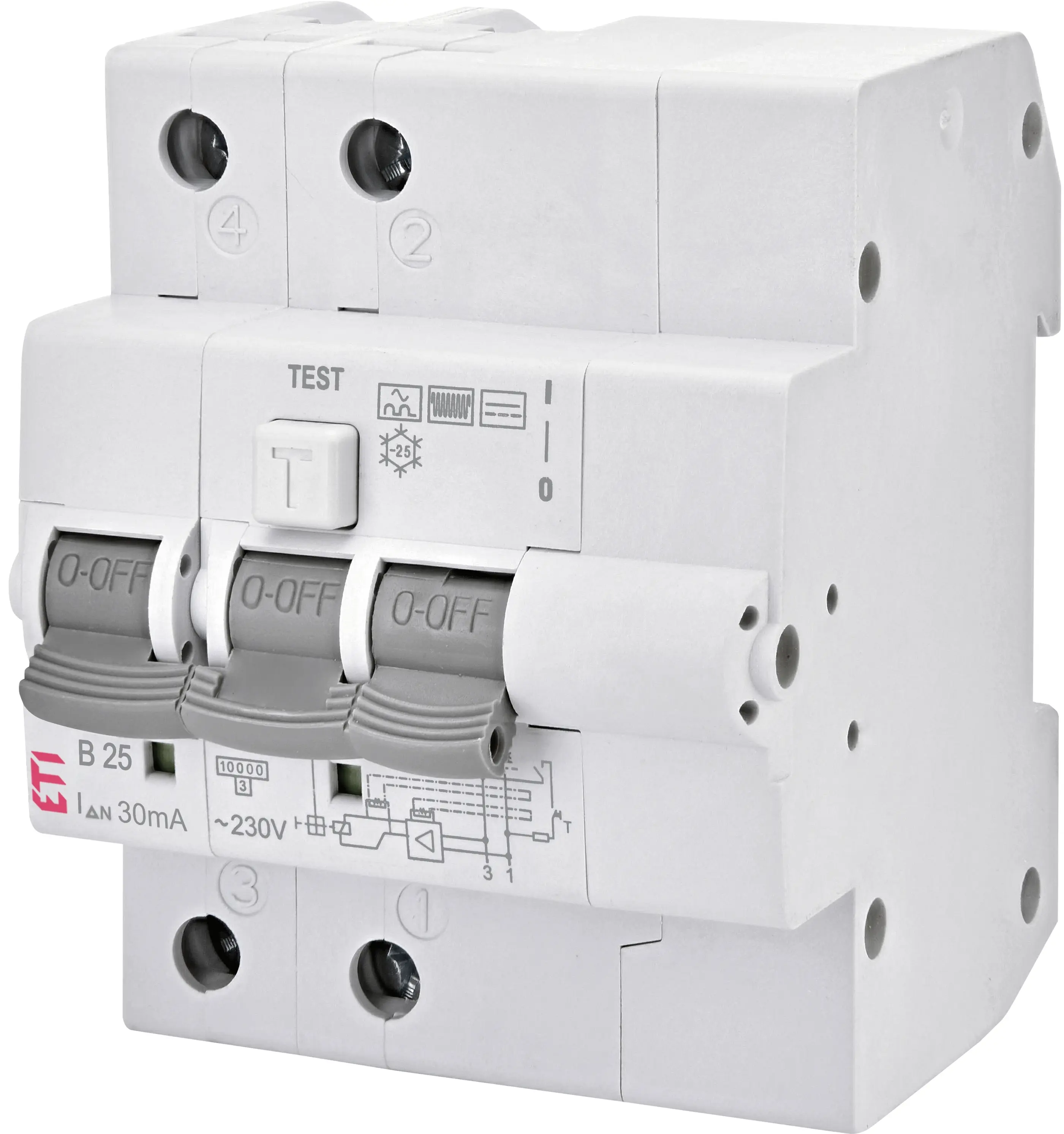

ETI CHRÁNIČ 10 KZS-4M 2P B B25/0,03 10KA 002174516

Proud. chránič s nadpr. ochran, kzs-4m 2p b b25/0.03, un (v) 240, počet pólů 2, zkratová odolnost (ka) 10, vypínací charakteristika b, jmenovitý podmíněný pracovní proud (ka) 10, vypínací čas okamžitý, vstupní svorky (mm2) 1-25, jmenovitá frekvence (hz) 50/60 hz, normy iec/en 61009, iec/en 62423, jmenovitý proud (a) 25, typ b, jmenovitý chybový pracovní proud idn (ma) 0.03, number of poles (total) 2 , number of protected poles 2 , rated voltage 230 v, rated insulation voltage ui v, rated impulse withstand voltage uimp kv, rated current 25 a, rated fault current 0.03 a, leakage current type b , current limiting class 3 , rated short-circuit breaking capacity according to en 61009 6 ka, rated short-circuit breaking capacity according to iec 60947-2 10 ka, rated short-circuit breaking capacity icn according to en 61009-1 ka, disconnection characteristic , surge current capacity 3 ka, voltage type ac , frequency 50/60 hz , release characteristic b , concurrently switching neutral conductor true , with interlocking device , over voltage category , pollution degree , ambient temperature during operating °c, width in number of modular spacings 4 , built-in depth 69 mm, suitable for flush-mounted installation true , anti-nuisance tripping version true , degree of protection (ip) ip20 , connectable conductor cross section solid-core 1…25 mm?, connectable conductor cross section multi-wired 1…35 mm?
