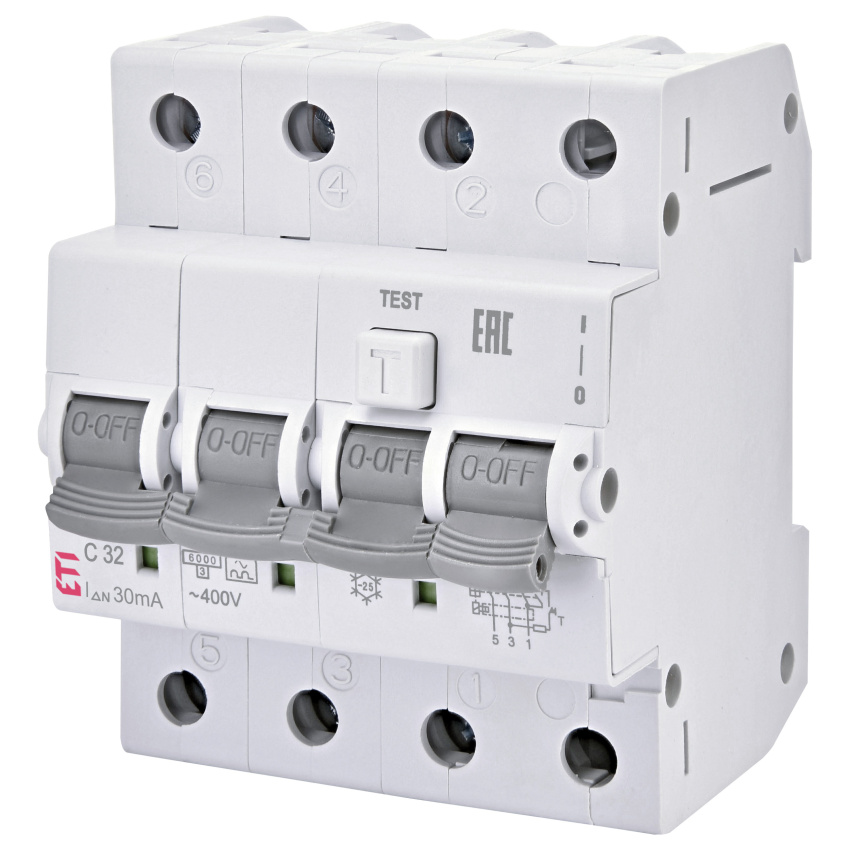

ETI CHRÁNIČ 10 KZS-4M 3P A C32/0,03 10KA 002174727

Proud. chránič s nadpr. ochran, kzs-4m 3p a c32/0.03, un (v) 415, počet pólů 3, zkratová odolnost (ka) 10, vypínací charakteristika c, jmenovitý podmíněný pracovní proud (ka) 10, vypínací čas okamžitý, vstupní svorky (mm2) 1-25, jmenovitá frekvence (hz) 50/60 hz, normy iec/en 61009, jmenovitý proud (a) 32, typ a, jmenovitý chybový pracovní proud idn (ma) 0.03, number of poles (total) , number of protected poles , rated voltage v, rated insulation voltage ui v, rated impulse withstand voltage uimp kv, rated current 32 a, rated fault current a, leakage current type other , current limiting class , rated short-circuit breaking capacity according to en 61009 ka, rated short-circuit breaking capacity according to iec 60947-2 ka, rated short-circuit breaking capacity icn according to en 61009-1 ka, disconnection characteristic , surge current capacity ka, voltage type , frequency other , release characteristic c , concurrently switching neutral conductor , with interlocking device , over voltage category , pollution degree , ambient temperature during operating °c, width in number of modular spacings , built-in depth mm, suitable for flush-mounted installation , anti-nuisance tripping version , degree of protection (ip) , connectable conductor cross section solid-core mm?, connectable conductor cross section multi-wired mm?
