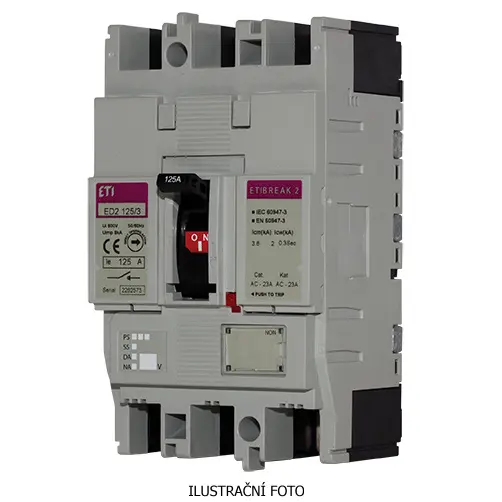

ETI ODPÍNAČ ED2 160/3 004671272

Odpínač, ed2 160/3, velikost rámu 160a, jmenovitý proud (a) 160, zkratová odolnost (ka) 6, funkce vypínač, počet pólů 3, jmenovitý krátkodobý výdržný proud icw at 0,3s 3, jmenovitá zkratová spínací schopnost icm 6, jmenovité provozní napětí (vdc) 250, jmenovité pracovní napětí(vac) 690, normy iec 60947-3, typ připojení přední připojení, třída použití ac-23a, dc-22a, jmenovité izolační napětí (v) 800v, jmenovité impulsní výdržné napětí (kv) 8kv, version as main switch true , version as maintenance-/service switch true , version as safety switch true , version as emergency stop installation , version as reversing switch , number of switches , max. rated operation voltage ue ac v, rated operating voltage v, rated permanent current iu 160 a, rated permanent current at ac-23, 400 v a, rated permanent current at ac-21, 400 v a, rated operation power at ac-3, 400 v kw, rated short-time withstand current lcw ka, rated operation power at ac-23, 400 v kw, switching power at 400 v kw, conditioned rated short-circuit current iq 65 ka, number of poles 3 , number of auxiliary contacts as normally closed contact , number of auxiliary contacts as normally open contact , number of auxiliary contacts as change-over contact , motor drive optional true , motor drive integrated , voltage release optional true , device construction built-in device fixed built-in technique , suitable for floor mounting true , suitable for front mounting 4-hole , suitable for front mounting centre , suitable for distribution board installation , suitable for intermediate mounting , colour control element , type of control element rocker lever , interlockable , type of electrical connection of main circuit screw connection , degree of protection (ip), front side ip20 , degree of protection (nema)
