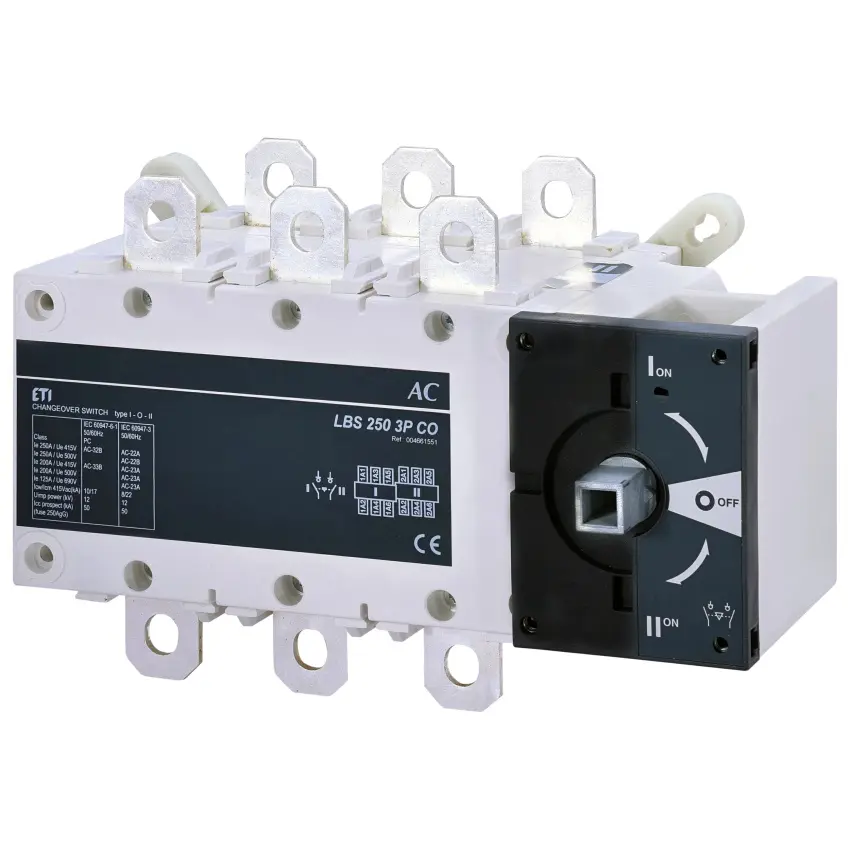

ETI PŘEPÍNAČ LBS 250 3P CO

Prepinač, lbs 250 3p co, skupina katalogu zátěžový přepínač lbs..co, max. jmenovité provozní napětí (v ac) 690, uchycení montáž na panel, počet pólů 3, jmenovité izolační napětí (v) 1000, jmenovité provozní napětí ie ac-21 a/b at 415v (a) 250, tepelný proud ith (a) 250, version as main switch true , version as maintenance-/service switch true , version as safety switch true , version as emergency stop installation , version as reversing switch , number of switches , max. rated operation voltage ue ac 415 v, rated operating voltage v, rated permanent current iu 250 a, rated permanent current at ac-23, 400 v a, rated permanent current at ac-21, 400 v a, rated operation power at ac-3, 400 v kw, rated short-time withstand current lcw ka, rated operation power at ac-23, 400 v 132 kw, switching power at 400 v kw, conditioned rated short-circuit current iq ka, number of poles 3 , number of auxiliary contacts as normally closed contact , number of auxiliary contacts as normally open contact , number of auxiliary contacts as change-over contact , motor drive optional , motor drive integrated false , voltage release optional , device construction , suitable for floor mounting true , suitable for front mounting 4-hole , suitable for front mounting centre , suitable for distribution board installation , suitable for intermediate mounting , colour control element , type of control element toggle , interlockable , type of electrical connection of main circuit , degree of protection (ip), front side , degree of protection (nema)
