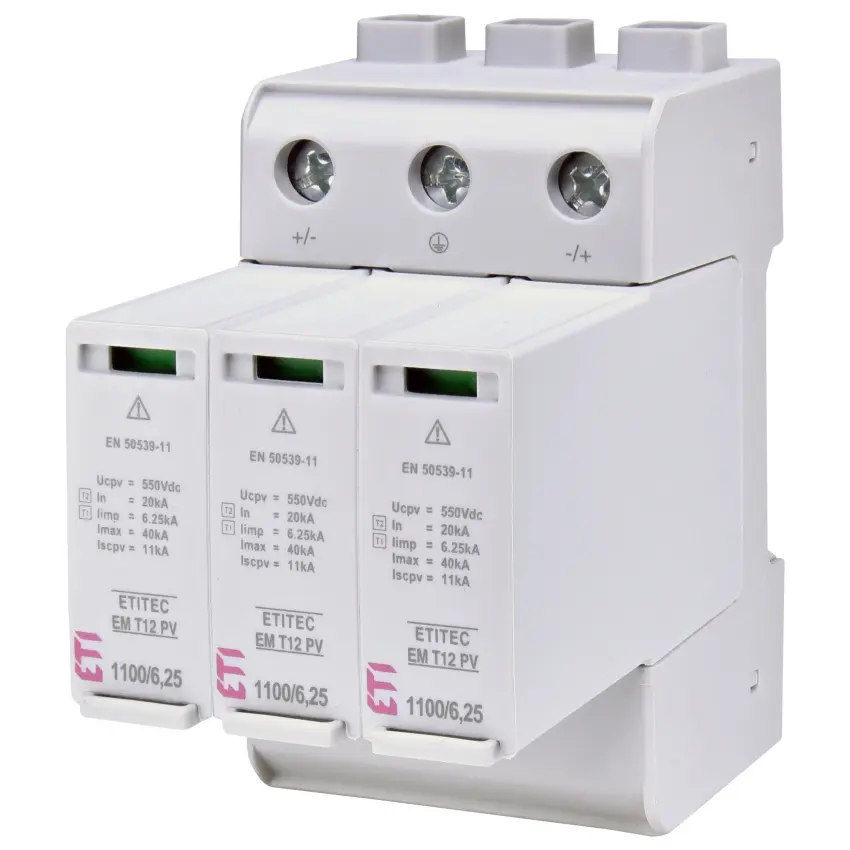

ETI SVODIČ PŘEPĚTÍ ETITEC EM T12 PV 1100/6,25 Y 002440580

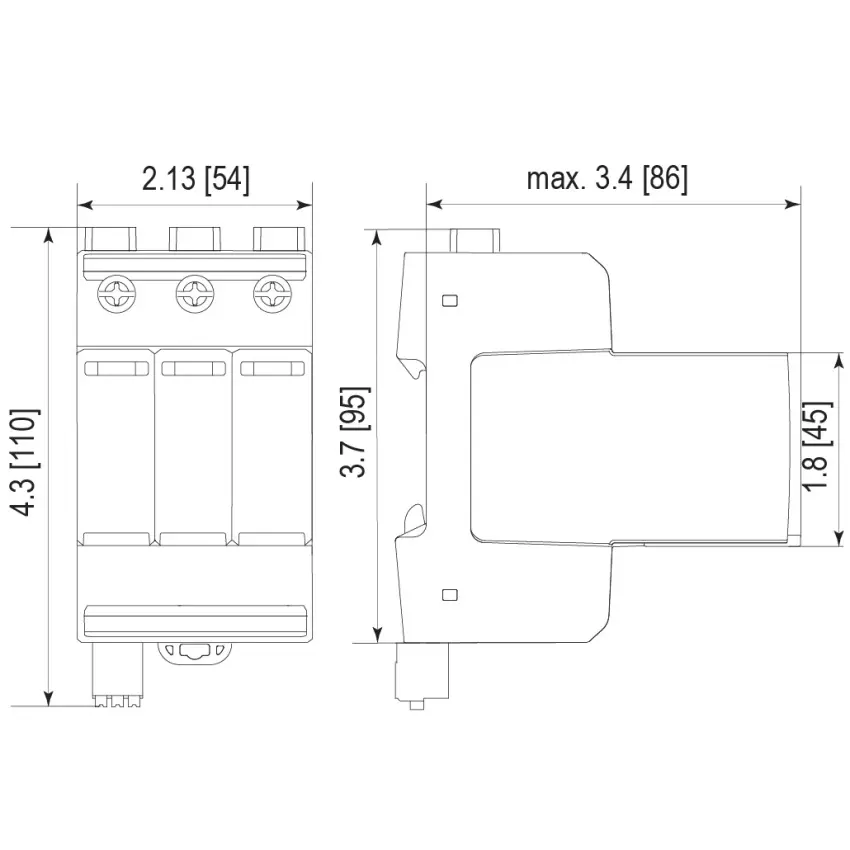

Svodič přepětí, etitec em t12 pv 1100/6,25 y, aplikovaná technologie mov, vestavná hloubka (mm) 86, funkce spd, impulzní proud iimp(10/350ms) (ka) 6,25, iimp - celkový impulsní proud (10/350) (ka) 65, max. výbojový proud imax(8/20ms) (ka) 40, in (8/20) 20, svodový proud ano, počet modulů 3, dálková signalizace ne, typ t1, t2, provozní napětí uc (v) 1100, up - úroveň ochrany napětí (kv) 3,8, system configuration dc , system configuration it , system configuration tn , system configuration tn-c , system configuration tn-c-s , system configuration tn-s , system configuration tt , system configuration other , number of poles 3 , lightning impulse current (10/350 µs) 6.25 ka, max. continuous voltage ac v, max. continuous voltage dc 1100 v, nominal voltage ac v, nominal voltage dc v, max. pv-voltage v, voltage protection level 3.8 kv, voltage protection level l-n kv, voltage protection level l-pe kv, voltage protection level n-pe kv, voltage protection level (dc+ - dc-) kv, voltage protection level (dc+/dc- - pe) kv, follow current extinguishing capability ka, specific energy (w/r) kj/ohm, max. conductor cross section solid (solid, stranded) 35 mm?, max. conductor cross section flexible (fine-strand) 25 mm?, mounting method din rail (top hat rail) 35 mm , construction size , remote signalling , signalling at the device , test class type 1 + 2 , exhausting , integrated backup fuse , energy-coordinated protection effect with regard to the terminal equipment , degree of protection (ip)
