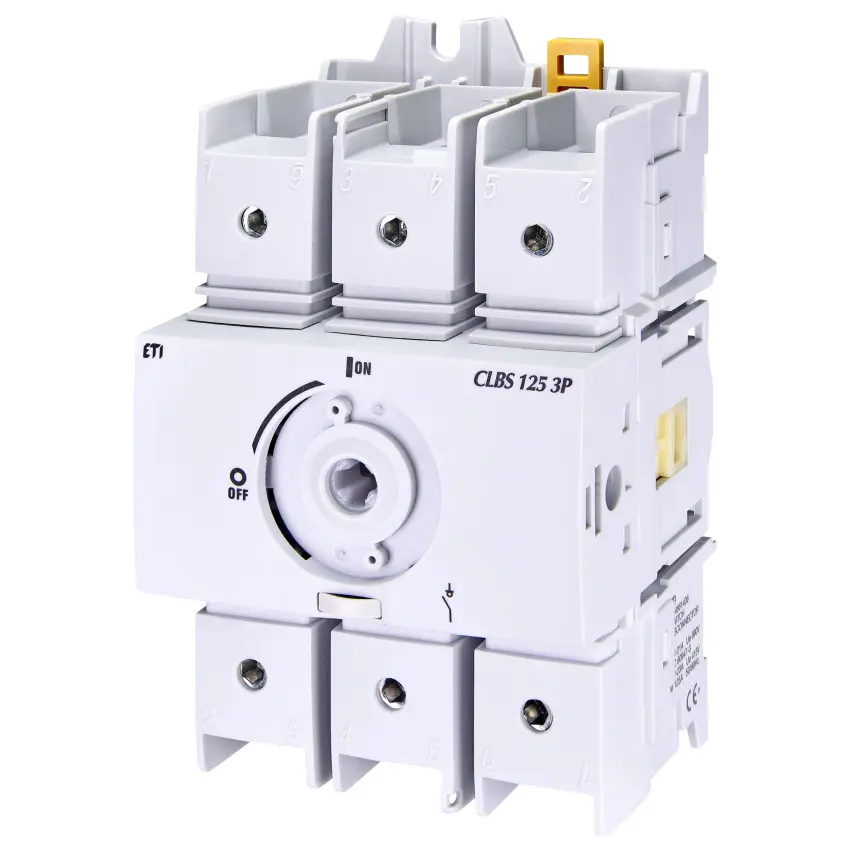

ETI VYPÍNAČ CLBS 125 3P 004661406

Odpínač, clbs 125 3p, max. jmenovité provozní napětí (v ac) 690, uchycení namontované din lišty, počet pólů 3, jmenovité izolační napětí (v) 800, jmenovité provozní napětí ie ac-21 a/b at 415v (a) 125 / 125, tepelný proud ith (a) 125, version as main switch true , version as maintenance-/service switch true , version as safety switch true , version as emergency stop installation true , version as reversing switch , number of switches , max. rated operation voltage ue ac 690 v, rated operating voltage v, rated permanent current iu 125 a, rated permanent current at ac-23, 400 v a, rated permanent current at ac-21, 400 v a, rated operation power at ac-3, 400 v kw, rated short-time withstand current lcw ka, rated operation power at ac-23, 400 v 55 kw, switching power at 400 v kw, conditioned rated short-circuit current iq ka, number of poles 3 , number of auxiliary contacts as normally closed contact , number of auxiliary contacts as normally open contact , number of auxiliary contacts as change-over contact , motor drive optional false , motor drive integrated false , voltage release optional false , device construction , suitable for floor mounting true , suitable for front mounting 4-hole , suitable for front mounting centre , suitable for distribution board installation true , suitable for intermediate mounting true , colour control element , type of control element turn button , interlockable , type of electrical connection of main circuit frame clamp , degree of protection (ip), front side ip20 , degree of protection (nema)
