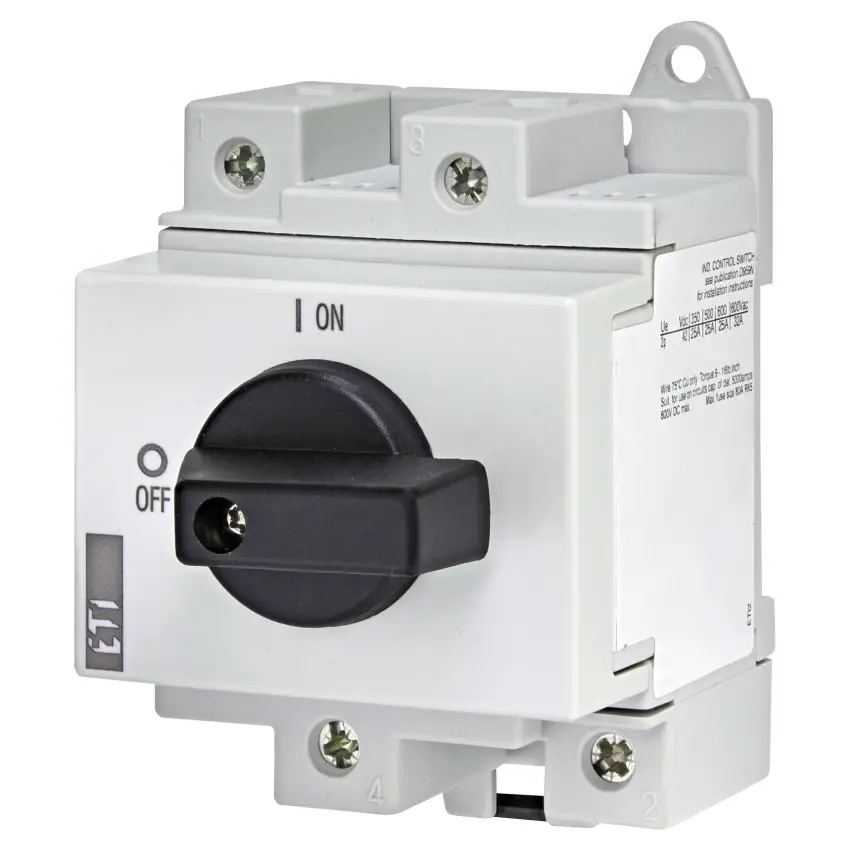

ETI VYPÍNAČ LS32 SMA A2, 004660062

Odpínač pv, ls32 sma a2, funkce pv odpínače, 0-1, max. jmenovité provozní napětí ur (v) 1500, uchycení namontované din lišty, počet pólů 2, jmenovitý pracovní proud ie dc-21 b at 1000v dc (a) 32, tepelný proud ith (a) 32, version as main switch true , version as maintenance-/service switch true , version as safety switch true , version as emergency stop installation false , version as reversing switch false , number of switches , max. rated operation voltage ue ac 440 v, rated operating voltage 300…1000 v, rated permanent current iu 32 a, rated permanent current at ac-23, 400 v a, rated permanent current at ac-21, 400 v 32 a, rated operation power at ac-3, 400 v 0 kw, rated short-time withstand current lcw 0 ka, rated operation power at ac-23, 400 v 0 kw, switching power at 400 v 0 kw, conditioned rated short-circuit current iq 5 ka, number of poles 2 , number of auxiliary contacts as normally closed contact 0 , number of auxiliary contacts as normally open contact 0 , number of auxiliary contacts as change-over contact 0 , motor drive optional false , motor drive integrated false , voltage release optional false , device construction built-in device fixed built-in technique , suitable for floor mounting false , suitable for front mounting 4-hole false , suitable for front mounting centre false , suitable for distribution board installation true , suitable for intermediate mounting false , colour control element black , type of control element turn button , interlockable false , type of electrical connection of main circuit frame clamp , degree of protection (ip), front side ip20 , degree of protection (nema)
